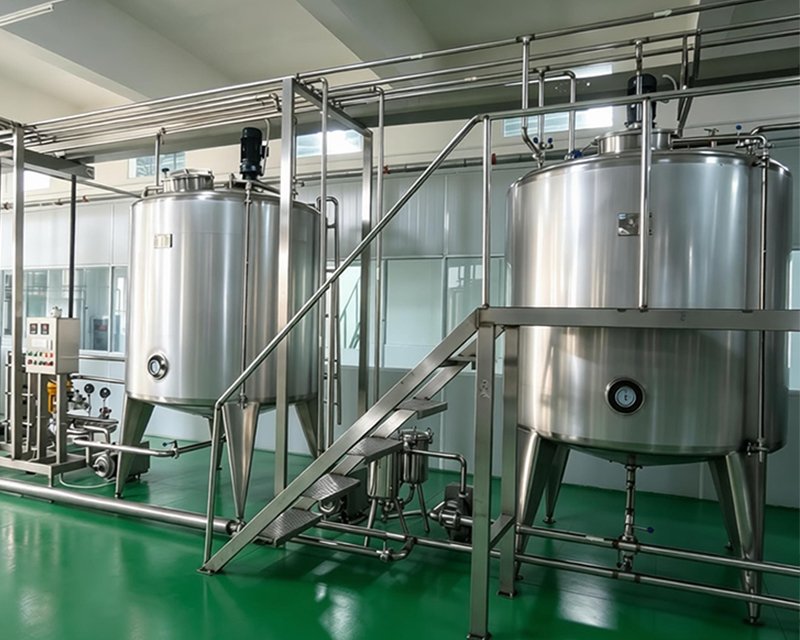

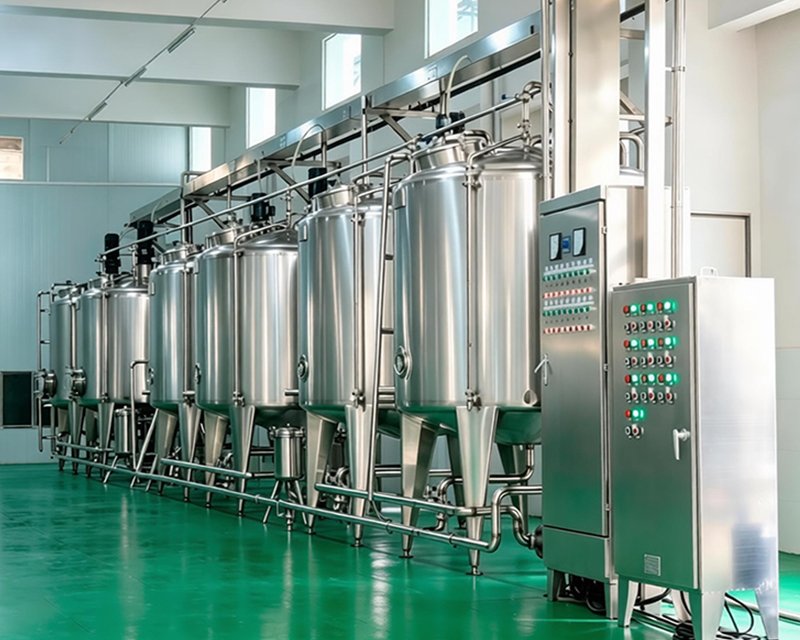

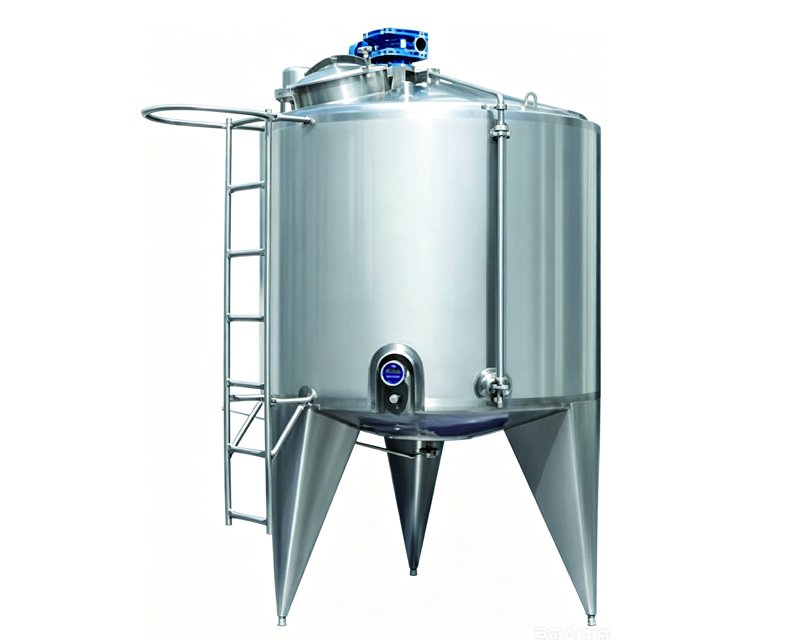

The Insulated storage tank is a food-grade unit engineered by Zhonglian Machinery for beverage, juice and water production lines. As a reliable Insulated storage tank, it delivers stable performance, hygienic design and easy integration into complete turnkey beverage production solutions for markets across Central Asia, Africa, Southeast Asia and South America.
Technical Description
- Material: Fully made of high-quality SUS304-2B or SUS316L stainless steel. Inner tank thickness: 3–4mm; outer shell thickness: 2mm.
- Structure Features: Double-layer structure with PU insulation layer of 50–60mm thickness; cylindrical tank body supported by triangular or cylindrical legs; available in non-agitating or agitating version with paddle, anchor, propeller and frame type impellers.
Standard Configuration
- Closed manhole
- Fly and insect-proof breathable cap
- PT100 digital thermometer
- CIP cleaning ball
- Material inlet and outlet ports
- Lever valve
- Adjustable triangular support legs
- Sampling valve
Technical Parameters
Model Specifications (1/4)
Items
SG-600
SG-1
SG-1.5
Effective Volume (L)
600
1000
1500
Cylinder Size (mm)
850×1000
1050×1220
1160×1500
Total Height (mm)
1950
1975
2450
PU Insulation Thickness (mm)
50
50
50
Inlet/Outlet Diameter (mm)
φ38 / φ51
φ38 / φ51
φ38 / φ51
Model Specifications (2/4)
Items
SG-2
SG-3
SG-4
Effective Volume (L)
2000
3000
4000
Cylinder Size (mm)
1300×1500
1400×2000
1600×2000
Total Height (mm)
2450
2950
2950
PU Insulation Thickness (mm)
50
50
50
Inlet/Outlet Diameter (mm)
φ38 / φ51
φ38 / φ51
φ38 / φ51
Model Specifications (3/4)
Items
SG-5
SG-6
SG-8
Effective Volume (L)
5000
6000
8000
Cylinder Size (mm)
1780×2000
1900×2000
2060×2400
Total Height (mm)
2950
2950
3350
PU Insulation Thickness (mm)
50
50
60
Inlet/Outlet Diameter (mm)
φ38 / φ51
φ38 / φ51
φ65 / φ51
Model Specifications (4/4)
Items
SG-10
SG-12
SG-15
Effective Volume (L)
10000
12000
15000
Cylinder Size (mm)
2200×2400
2250×3000
2500×3000
Total Height (mm)
3395
3950
3950
PU Insulation Thickness (mm)
60
60
60
Inlet/Outlet Diameter (mm)
φ65 / φ51
φ65 / φ51
φ65 / φ51
Data is for reference only. Specifications are subject to change without prior notice due to continuous R&D improvement.
Application Fields
- Dairy industry: Insulated storage and mixing of fresh milk, liquid dairy products and milk-based ingredients
- Beverage industry: Heat-preserving storage and blending of juice, tea beverage, syrup and other temperature-sensitive liquid raw materials
- Brewing industry: Insulated storage and process transfer of beer, fruit wine and fermentation broth
- Food processing industry: Thermal insulation storage and mixing of liquid condiments, plant extracts and food additives
- Chemical & bioengineering: Insulated storage and mixing of liquid raw materials, intermediate products and process solutions in chemical, pharmaceutical and bioengineering fields
