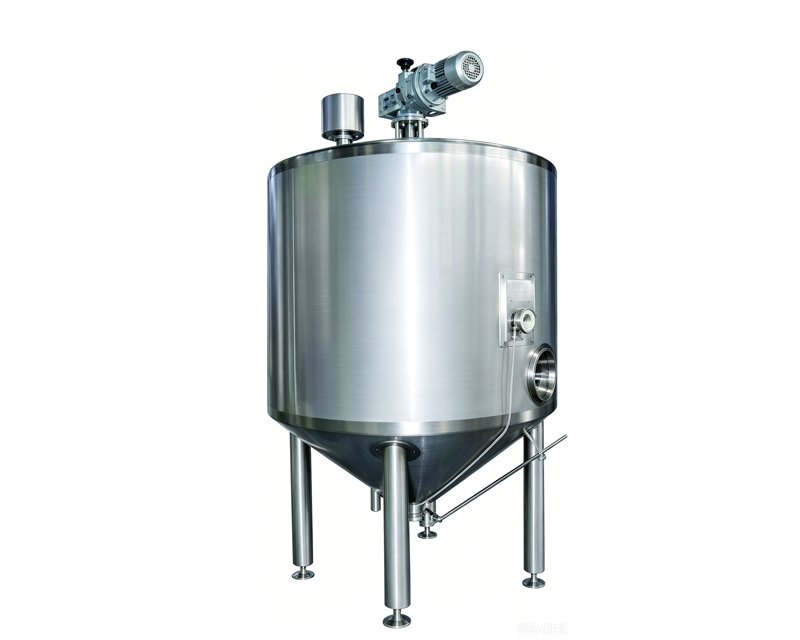

Technical Description
- Material: Tank body made of imported SUS304 or SUS316L stainless steel; jacket thickness: 1.5mm; outer PU polyurethane insulation layer for stable temperature retention.
- Structure Features: Adopts internal circulation mode with asymmetric speed-adjustable stirring system, enabling fast temperature drop of materials while greatly reducing damage to material viscosity.
- Heat Transfer Design: Unique medium diversion structure ensures even distribution of cooling medium in the jacket, eliminates medium short circuit and delivers high-efficiency heat transfer effect.
- Hygienic Design: Equipped with automatic spray cleaning head inside the tank, which ensures thorough cleaning and complies with GMP production standards.
Standard Configuration
- Closed manhole
- Dust-proof breathable cap
- PT100 digital thermometer
- Automatic CIP spray cleaning head
- Asymmetric speed-adjustable agitator
- Material inlet and outlet ports
- Cooling/heating medium inlet and outlet ports
- Adjustable support legs
- Sterile sampling valve
Technical Parameters
Model Specifications (1/4)
Items
FG-600
FG-1
FG-1.5
Volume (L)
600
1000
1500
Diameter (mm)
850
1050
1180
Total Height (mm)
2250
2300
2750
PU Insulation Thickness (mm)
50
50
50
Jacket Thickness (mm)
1.5
1.5
1.5
Inlet/Outlet Diameter (mm)
φ38 / φ51
φ38 / φ51
φ38 / φ51
Model Specifications (2/4)
Items
FG-2
FG-3
FG-4
Volume (L)
2000
3000
4000
Diameter (mm)
1340
1540
1650
Total Height (mm)
2800
3300
3300
PU Insulation Thickness (mm)
50
50
50
Jacket Thickness (mm)
1.5
1.5
1.5
Inlet/Outlet Diameter (mm)
φ38 / φ51
φ38 / φ51
φ38 / φ51
Model Specifications (3/4)
Items
FG-5
FG-6
FG-8
Volume (L)
5000
6000
8000
Diameter (mm)
1780
1900
2100
Total Height (mm)
3350
3350
3800
PU Insulation Thickness (mm)
50
50
60
Jacket Thickness (mm)
1.5
1.5
1.5
Inlet/Outlet Diameter (mm)
φ38 / φ51
φ38 / φ51
φ65 / φ51
Model Specifications (4/4)
Items
FG-10
FG-12
Volume (L)
10000
12000
Diameter (mm)
2300
2520
Total Height (mm)
3850
3900
PU Insulation Thickness (mm)
60
60
Jacket Thickness (mm)
1.5
1.5
Inlet/Outlet Diameter (mm)
φ65 / φ51
φ65 / φ51
Data is for reference only. Specifications are subject to change without prior notice due to continuous R&D improvement.
Application Fields

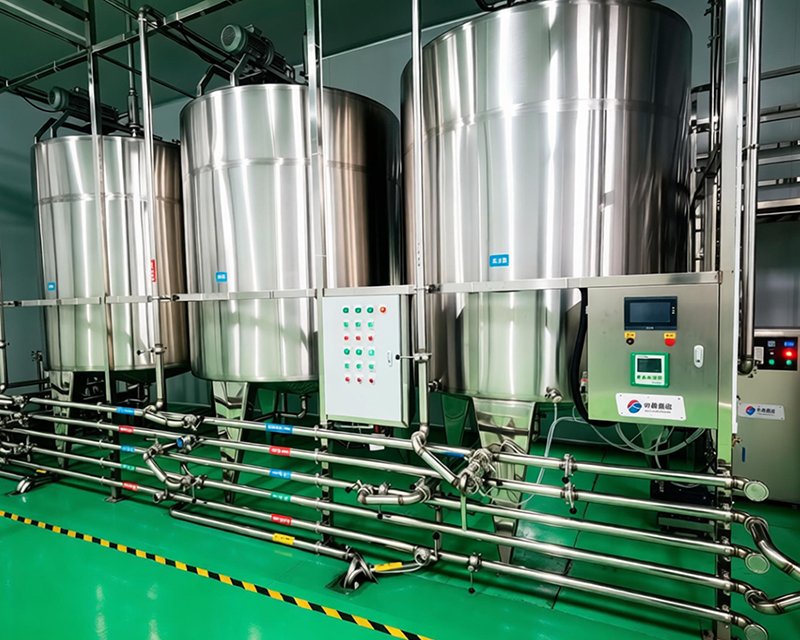

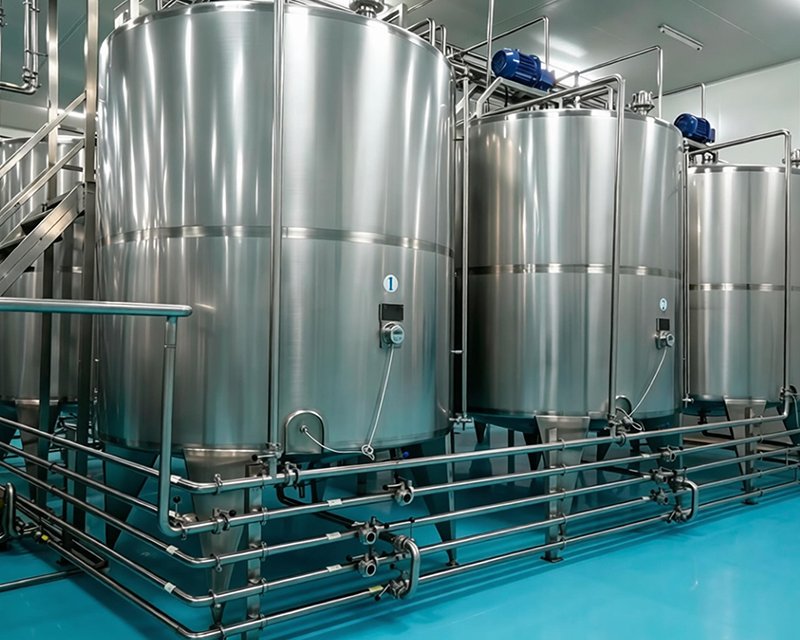

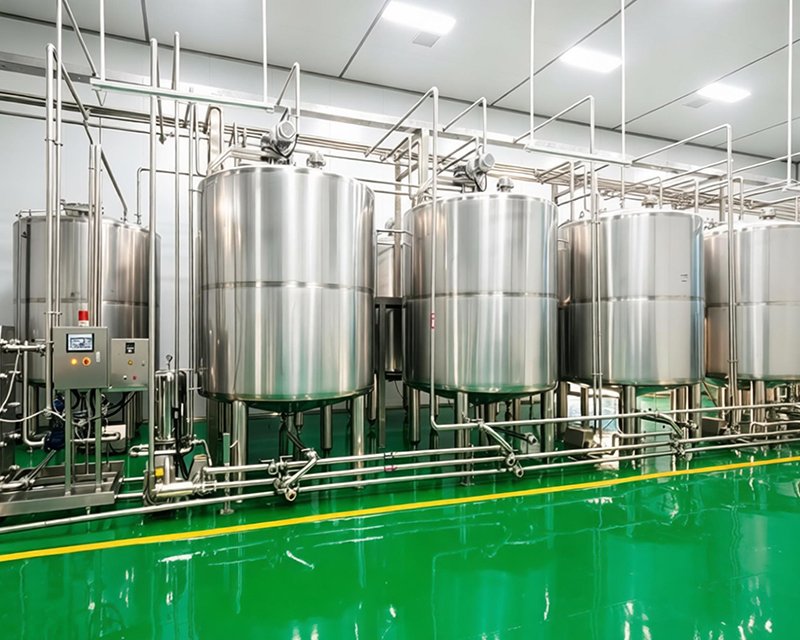

- Dairy industry: Used as yogurt fermentation tank, batching tank and blending tank for milk, yogurt and other dairy product processing
- Beverage industry: Fermentation and temperature-controlled cultivation of lactic acid bacteria drinks, plant protein beverages and fermented beverages
- Bioengineering: Strain cultivation, culture medium fermentation and biological culture reaction in food and pharmaceutical industries
- Food processing: Fermentation process of fermented food, condiments and plant extract products
