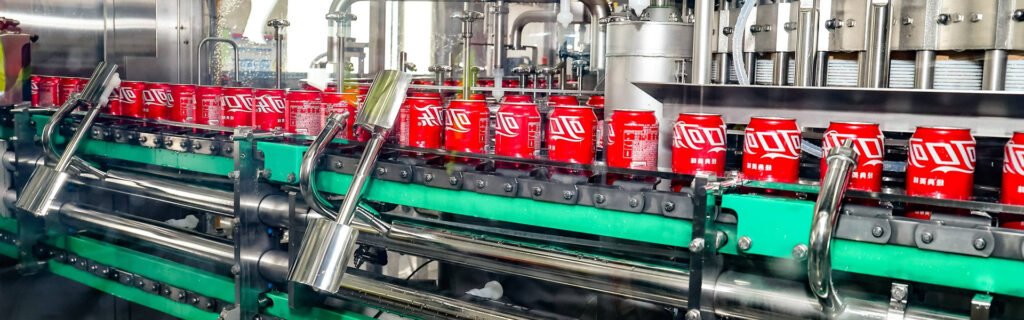

Core Production Steps of Carbonated Drinks
The six core processes
Custom Complete Solutions for All Types of Carbonated Beverages
From PET bottles, glass bottles and aluminum cans to disposable large barrels, Zhonglian Machinery delivers fully customized carbonated beverage production lines to match every one of your production demands. Whether you manufacture cola, fruit-flavored soda, sparkling water or tonic drinks, our tailor-made integrated systems adopt precision isobaric filling technology to ensure stable carbonation level and minimal CO₂ loss. Covering full procedures from water treatment, syrup blending, carbonation mixing to end-of-line packaging, we support diversified packaging formats with stable, high-efficiency turnkey equipment.
Comprehensive Advantages of the Production Line
One production line supports PET bottles, glass bottles, aluminum cans, barrels and other packaging formats, and easily switches between cola, fruit-flavored soda and other products.
Fully enclosed production throughout the process. Isobaric filling technology prevents carbon dioxide loss. Multi-stage filtration and sterilization ensure beverage hygiene and safety.
Touchscreen human-machine interface with visual parameter adjustment, easy to master even for new operators.
Flexible equipment configuration to match small workshops and large-scale factories, with a wide range of capacity options.
- Convenient Maintenance: The stainless steel body is easy to clean and corrosion-resistant, with universal spare parts and low later maintenance cost.
Main Packaging Formats
The production line features strong compatibility and flexible switching between packaging formats, meeting demands of supermarkets, catering, distribution and other market channels:

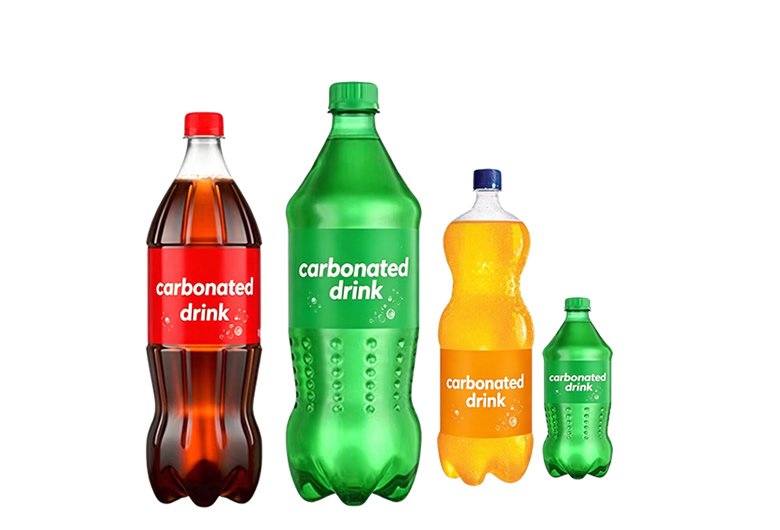

PET bottle
330ml–1.5L | Light shatterproof mass-market carbonated packaging

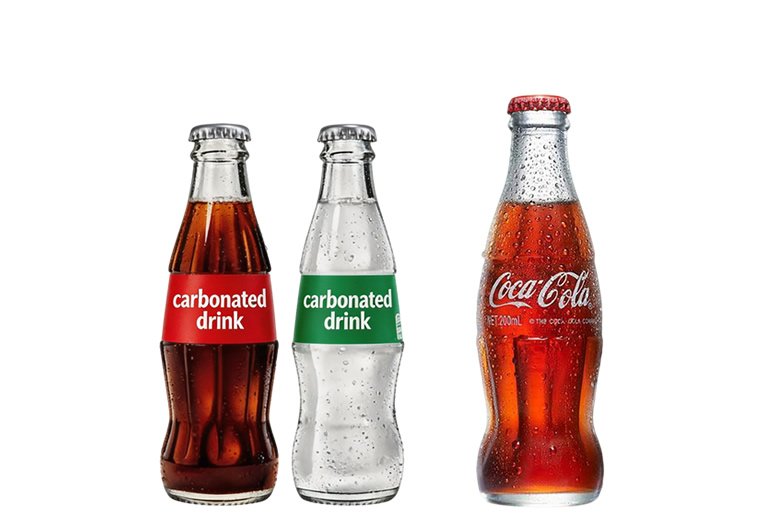

Glass Bottle
200ml–1L | Airtight premium bottle for long-lasting soda flavor
Aluminum Can
200ml–330ml | Portable pressure-resistant single-serve beverage container

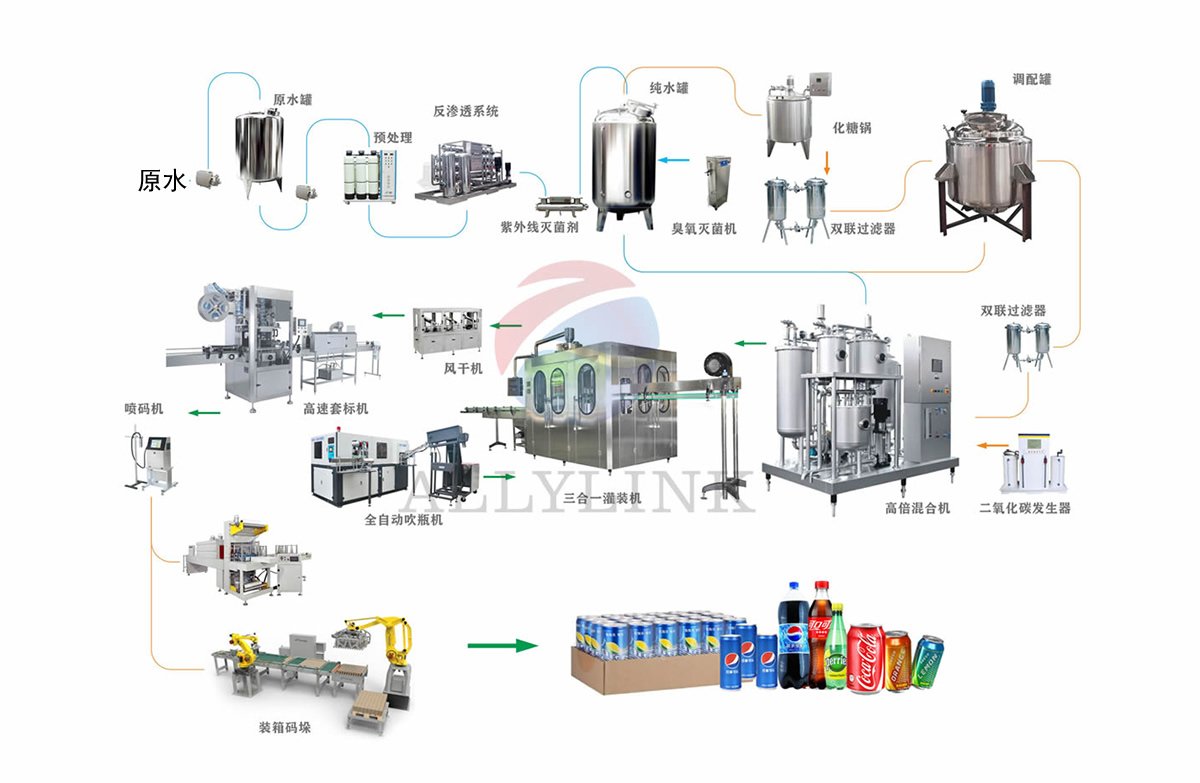

Carbonated Beverage Production Line & Production Process Guide
Carbonated beverages (sparkling sodas), represented by cola, lemon-lime soda and fruit-flavored sparkling drinks, deliver a distinctive crisp taste from carbon dioxide dissolved in liquid. Zhonglian Machinery supplies fully automatic carbonated beverage production lines integrating water treatment, batching, carbonation, filling and packaging. With mature technology and stable operation, the lines are compatible with multiple packaging formats and cover capacities from small-batch to large-scale manufacturing, widely applied in mass production of various sparkling beverages.
Main Equipment & Performance Features
The entire production line is mainly made of food-grade stainless steel, with corrosion resistance, no sanitary dead corners and easy cleaning. Core electrical and pneumatic components are sourced from internationally renowned brands. Equipped with a PLC control system and touchscreen operation interface, it achieves a high degree of automation. It is also fitted with comprehensive safety devices including overload protection, automatic stop upon bottle jamming and cap shortage detection for safe and stable equipment operation.
It consists of quartz sand filters, activated carbon filters, sodium ion filters, precision filters, primary reverse osmosis units, UV sterilizers and aseptic water storage tanks. The system stably produces pure water meeting carbonated beverage production standards, effectively protects downstream filling equipment and extends the service life of the whole line.

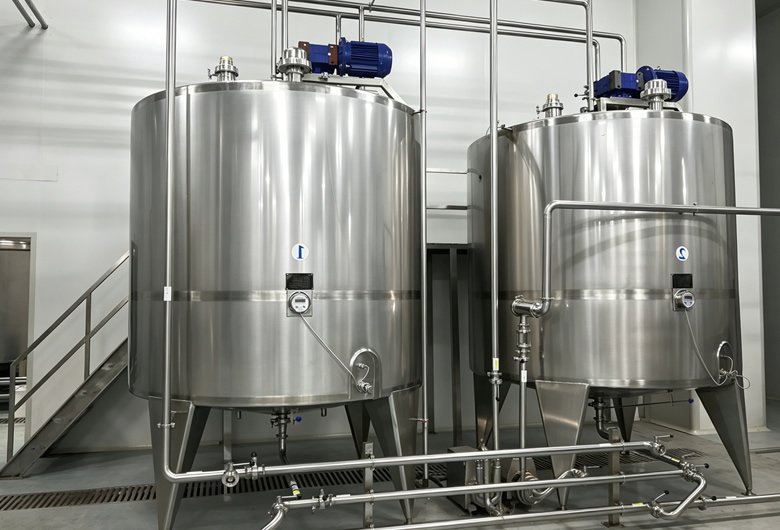

It consists of sugar melting kettles, blending tanks, syrup filters, duplex filters and CO₂ purifiers. The system completes sugar dissolving, formula batching, impurity filtration and gas purification, and delivers standardized flavor syrup for the subsequent carbonation process.
It consists of an industrial chiller, plate heat exchanger and beverage carbonator. It cools materials to the process-required temperature and achieves precise mixing of water, syrup and carbon dioxide, adapting to the production of various carbonated beverages.
It includes fully automatic / semi-automatic bottle blowers, bottle unscramblers and bottle rinsing & spraying equipment. It realizes integrated bottle forming, sorting and cleaning, and is compatible with various bottle shapes and container specifications.

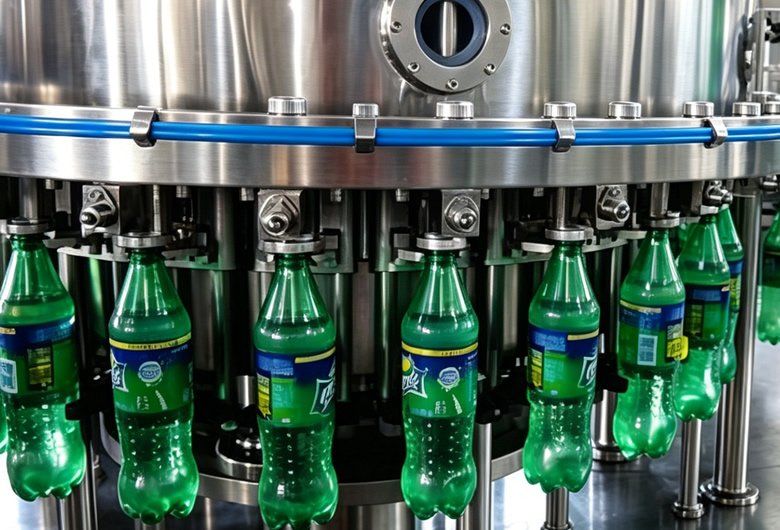

It integrates bottle rinsing, isobaric filling and capping, with linear and rotary structures available in multiple configurable models. It is equipped with high-precision filling valves and magnetic constant-torque capping heads, and supports quick bottle format changeover for stable, efficient production.
It includes light inspection equipment, bottle air dryers, inkjet / laser coders, sleeve labeling machines, fully automatic shrink wrappers and case packers. The fully automatic workflow ensures neat packaging and clear product identification for finished carbonated beverages.
It performs full cleaning for all pipelines, tanks and equipment of the production line without disassembly, with automatic dosing and cycle control. It strictly meets the sanitary standards of the food industry and maintains long-term hygienic production conditions.
It includes air conveyors for empty bottles and product conveyors for semi-finished & finished products, covering transfer between all production sections. It realizes seamless and stable material delivery between processes and improves the overall operating efficiency of the line.
Carbonated Beverage Production Line Investment Reference Table
Zhonglian Equipment | Turnkey Project Evaluation Reference
| Package Type | Line Specification | Estimated Investment Budget (USD) | Hourly Production Capacity | Daily Output (8-hour shift) | Number of Operators Required | Estimated Payback Period |
| PET Bottled | Small-scale | 30,000 – 45,000 | 2,000 bottles | 16,000 bottles | 2 – 3 persons | 1.5 – 2.0 years |
| Medium-scale | 80,000 – 120,000 | 6,000 bottles | 48,000 bottles | 4 – 6 persons | 2.0 – 2.5 years | |
| Large-scale | 180,000 – 260,000 | 12,000 bottles | 96,000 bottles | 7 – 10 persons | 2.5 – 3.0 years | |
| Glass Bottled | Small-scale | 45,000 – 65,000 | 2,000 bottles | 16,000 bottles | 3 – 4 persons | 1.8 – 2.3 years |
| Medium-scale | 110,000 – 160,000 | 6,000 bottles | 48,000 bottles | 5 – 7 persons | 2.2 – 2.8 years | |
| Large-scale | 220,000 – 320,000 | 12,000 bottles | 96,000 bottles | 8 – 11 persons | 2.8 – 3.5 years | |
| Aluminum Can | Small-scale | 50,000 – 70,000 | 6,000 cans | 48,000 cans | 3 – 4 persons | 1.6 – 2.2 years |
| Medium-scale | 100,000 – 150,000 | 12,000 cans | 96,000 cans | 5 – 7 persons | 2.0 – 2.6 years | |
| Large-scale | 200,000 – 280,000 | 24,000 cans | 192,000 cans | 8 – 10 persons | 2.5 – 3.2 years | |
| Tinplate Can | Small-scale | 60,000 – 85,000 | 4,000 cans | 32,000 cans | 3 – 5 persons | 1.8 – 2.4 years |
| Medium-scale | 120,000 – 180,000 | 10,000 cans | 80,000 cans | 6 – 8 persons | 2.3 – 3.0 years | |
| Large-scale | 230,000 – 320,000 | 20,000 cans | 160,000 cans | 9 – 12 persons | 2.8 – 3.6 years |
RELATED CASES
View All
Client Profile AfriFizz Drinks is a startup beverage brand based in Nairobi, Kenya, focusing on affordable carbonated soft drinks for mass community markets. The founding…
Client Overview SipNest Beverages is a well-established medium-sized beverage manufacturer based in Lahore, Pakistan, with 5 years of operation experience in fruit juice production. Driven…
Factory Show
Henan Zhonglian Enterprise covers a total area of over 6,000 square meters, with over 4,000 square meters of standardized industrial workshops and fixed assets of 20 million yuan. To ensure the processing quality of its food and beverage equipment, the company is equipped with over 30 advanced machines, including CNC machining centers, large hydraulic equipment, automatic polishing equipment, large shearing, bending, and rolling equipment, dynamic balancing equipment, physical performance testing equipment, hydrostatic testing equipment, and electrical safety testing instruments. The entire process, from design and sales to production and inspection, is managed using computerized programs.
