The Jacketed tank is a food-grade unit engineered by Zhonglian Machinery for beverage, juice and water production lines. As a reliable Jacketed tank, it delivers stable performance, hygienic design and easy integration into complete turnkey beverage production solutions for markets across Central Asia, Africa, Southeast Asia and South America.
Technical Description
- Material: Inner tank made of high-quality SUS304-2B or SUS316L stainless steel; jacket thickness: 1.5mm; outer layer equipped with PU polyurethane insulation layer.

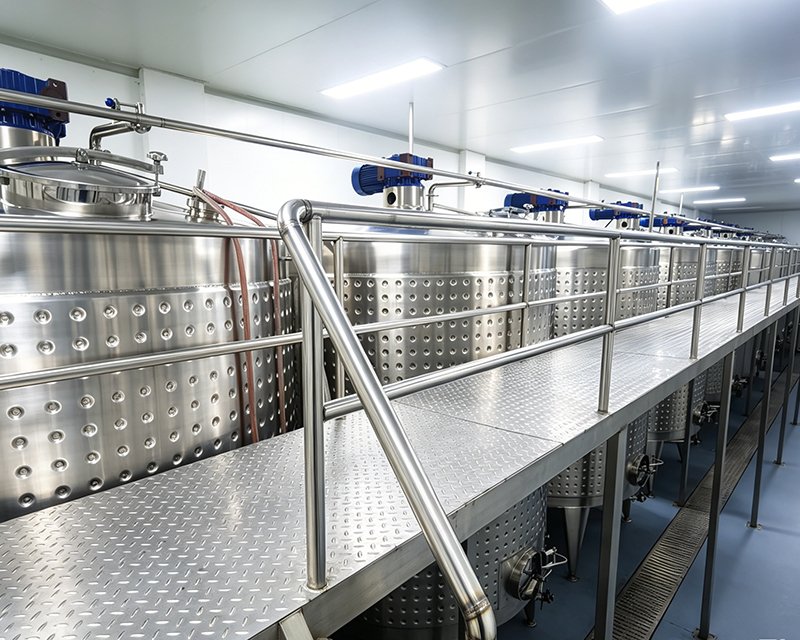

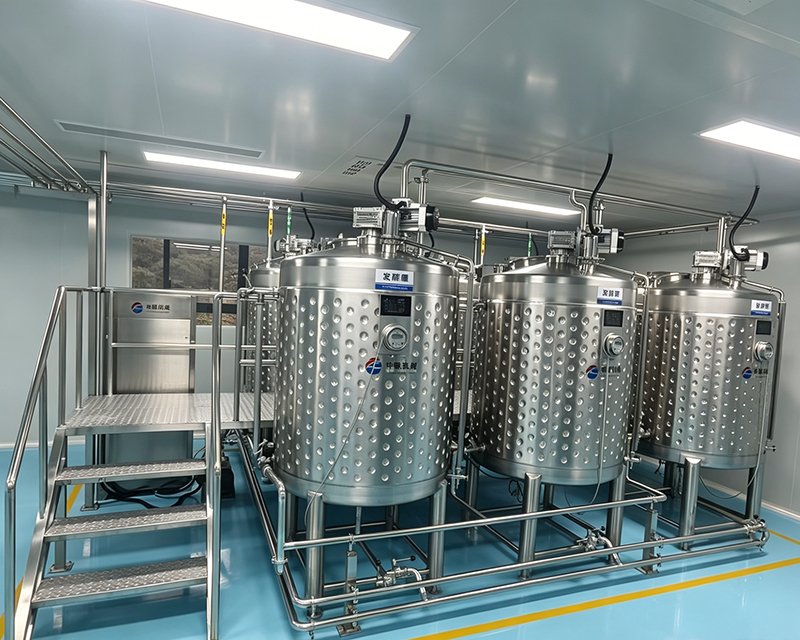

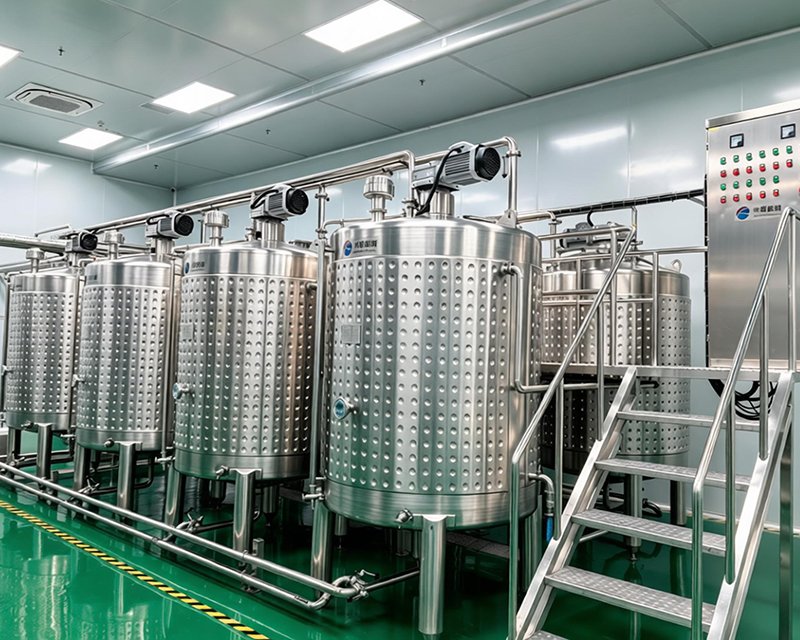

- Structure Features: Cylindrical tank body with conical bottom, supported by stable support legs. Three jacket types are available: Miller dimple jacket, hollow jacket and coil jacket, with optimized flow channel design for even and sufficient heat transfer.
- Heat Transfer Performance: Unique medium diversion structure avoids medium short circuit, improves heat exchange efficiency and ensures uniform temperature of materials inside the tank.
Standard Configuration
- Closed manhole
- Fly and insect-proof breathable cap
- PT100 digital thermometer
- CIP cleaning ball
- Material inlet and outlet ports
- Heating/cooling medium inlet and outlet ports
- Adjustable support legs
- Sampling valve
- Pressure gauge
Technical Parameters
Model Specifications (1/4)
Items
JG-600
JG-1
JG-1.5
Effective Volume (L)
600
1000
1500
Diameter (mm)
850
1050
1180
Total Height (mm)
1950
1970
2450
PU Insulation Thickness (mm)
50
50
50
Jacket Thickness (mm)
1.5
1.5
1.5
Inlet/Outlet Diameter (mm)
φ38 / φ51
φ38 / φ51
φ38 / φ51
Model Specifications (2/4)
Items
JG-2
JG-3
JG-4
Effective Volume (L)
2000
3000
4000
Diameter (mm)
1340
1540
1650
Total Height (mm)
2450
2450
2950
PU Insulation Thickness (mm)
50
50
50
Jacket Thickness (mm)
1.5
1.5
1.5
Inlet/Outlet Diameter (mm)
φ38 / φ51
φ38 / φ51
φ38 / φ51
Model Specifications (3/4)
Items
JG-5
JG-6
JG-8
Effective Volume (L)
5000
6000
8000
Diameter (mm)
1780
1900
2060
Total Height (mm)
2950
2950
3350
PU Insulation Thickness (mm)
50
50
60
Jacket Thickness (mm)
1.5
1.5
1.5
Inlet/Outlet Diameter (mm)
φ38 / φ51
φ38 / φ51
φ65 / φ51
Model Specifications (4/4)
Items
JG-10
JG-12
JG-15
Effective Volume (L)
10000
12000
15000
Diameter (mm)
2300
2520
2540
Total Height (mm)
3390
3950
3950
PU Insulation Thickness (mm)
60
60
60
Jacket Thickness (mm)
1.5
1.5
1.5
Inlet/Outlet Diameter (mm)
φ65 / φ51
φ65 / φ51
φ65 / φ51
Data is for reference only. Specifications are subject to change without prior notice due to continuous R&D improvement.
Application Fields
- Dairy industry: Used as batching tank, aging tank, cream storage tank and sterilization tank for milk and dairy product processing
- Beverage industry: Heating, cooling and blending of juice, syrup, tea extract and other liquid raw materials
- Brewing & fermentation industry: Temperature-controlled fermentation and storage for beer, fruit wine and fermented beverages
- Food processing industry: Heating, heat preservation and cooling of liquid condiments, plant extracts and food additives
- Bioengineering & pharmaceutical: Temperature-controlled storage and reaction of liquid raw materials, culture medium and intermediate products
