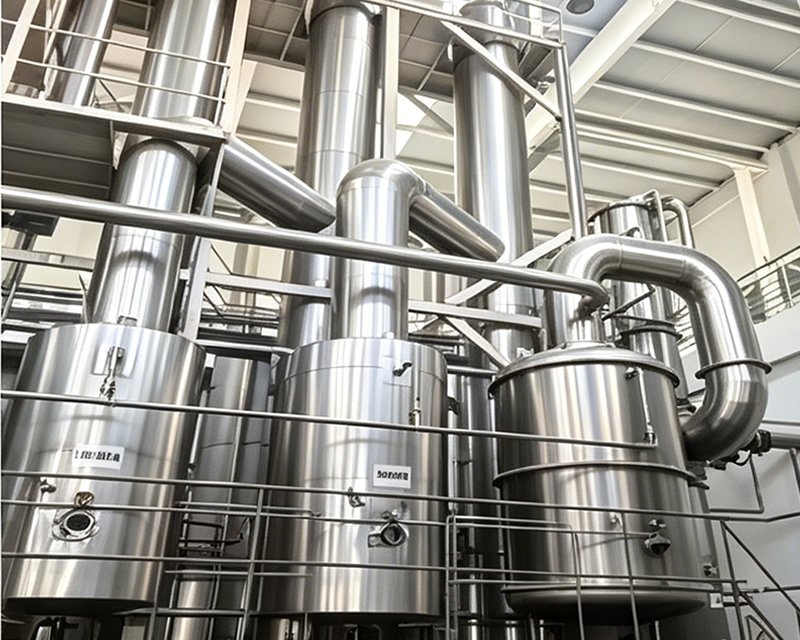

Equipment Features
- Multi-effect energy-saving structure Adopts multi-effect evaporation design, and the secondary steam from the previous effect is reused as heating source for the next effect. It greatly reduces steam and cooling water consumption, significantly cutting long-term operation cost compared with single-effect equipment.
- Short-time low-temperature evaporation Materials form a uniform thin film on the inner wall of heating tubes and evaporate rapidly. With extremely short heating residence time and low evaporation temperature, it effectively protects heat-sensitive active ingredients, flavor, color and nutrients of products.
- Continuous integrated operation Supports continuous feeding and discharging, and can integrate sterilization and concentration processes in one production line, which improves production efficiency and reduces intermediate contamination risks.
- Optimized film-forming design Precisely designed liquid distribution structure ensures uniform film formation on the inner wall of each heating tube, avoiding dry wall and coking, with stable concentration effect and high evaporation efficiency.
- Hygienic food-grade construction All material-contact parts are made of high-quality stainless steel, smooth and corrosion-resistant, easy to clean and maintain, fully complying with food and pharmaceutical GMP production standards.
- Flexible configuration options Available in different effect stages and capacity specifications, with customizable configurations to match various production scales and material process requirements.

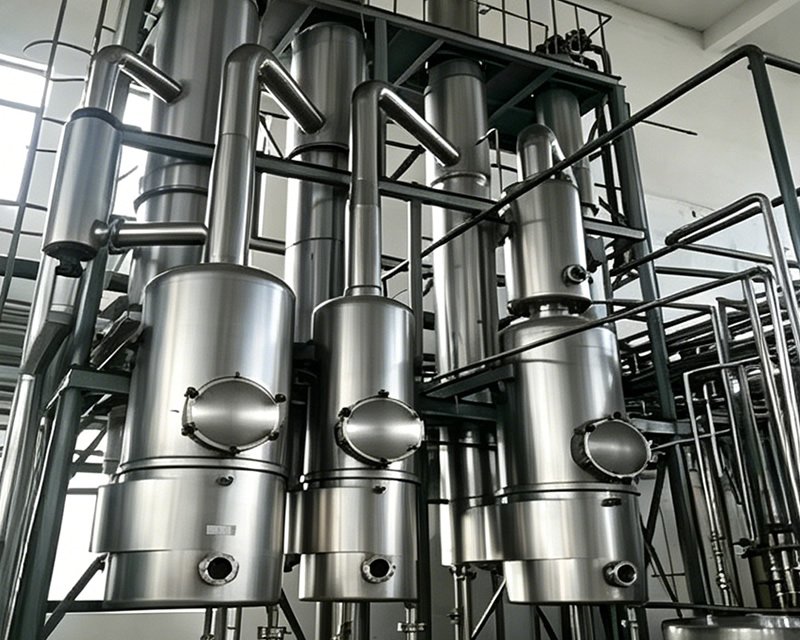

Working Principle
Materials are evenly distributed into each heating tube and form a continuous thin film flowing down along the inner wall. Heated by steam outside the tubes, the material film evaporates rapidly at low temperature under vacuum condition.

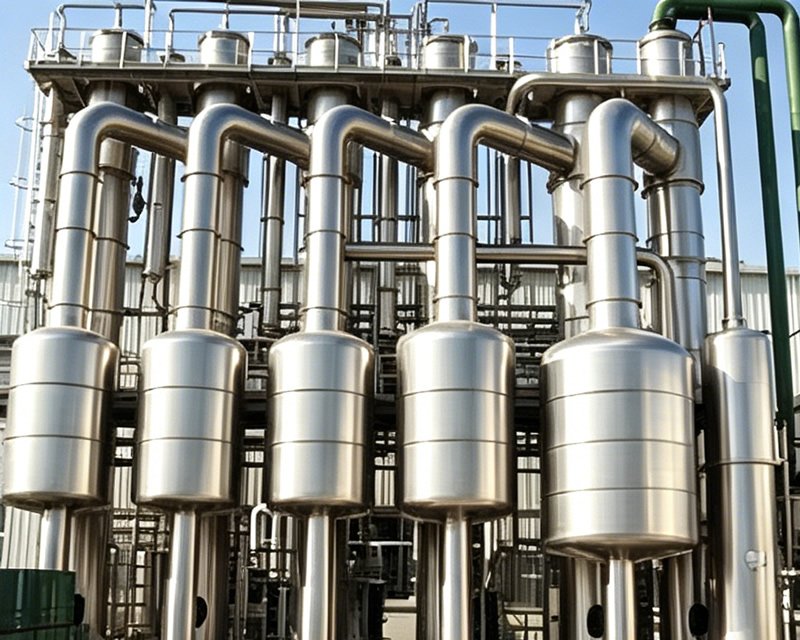

In multi-effect configuration, the secondary steam generated from the first effect is delivered to the second effect as its heating medium, and so on for subsequent effects. This cascade utilization of steam energy greatly improves thermal efficiency and reduces energy consumption. Materials pass through each effect stage quickly with very short heating residence time, which maximally preserves active ingredients, flavor and nutritional value of heat-sensitive products.
Technical Parameters
Small Capacity Models (1/2)
Items
PLONS-30
PLCNS-600
Water Evaporation Capacity (kg/h)
30
600
Material Processing Capacity
40
800
Feed Concentration (%)
11.5
11.5
Discharge Concentration (%)
45–48
45–48
1st Effect Evap. Temp. (℃)
68–72
68–72
2nd Effect Evap. Temp. (℃)
—
—
3rd Effect Evap. Temp. (℃)
—
—
4th Effect Evap. Temp. (℃)
—
—
Steam Consumption (kg/h)
17
410
Cooling Water (t/h, 16→40℃)
5
7.2
Overall Dimensions (m)
3×1.5×4.8
5×2×8
Small Capacity Models (2/2)
Items
PLONS-700
PLCNS-1250
Water Evaporation Capacity (kg/h)
700
1250
Material Processing Capacity
940
1680
Feed Concentration (%)
11.5
11.5
Discharge Concentration (%)
45–48
45–48
1st Effect Evap. Temp. (℃)
68–72
68–72
2nd Effect Evap. Temp. (℃)
45–52
45–52
3rd Effect Evap. Temp. (℃)
—
—
4th Effect Evap. Temp. (℃)
—
—
Steam Consumption (kg/h)
280
500
Cooling Water (t/h, 16→40℃)
5
9
Overall Dimensions (m)
5×2.5×8.5
5.5×3×8.5
Medium Capacity Models (1/2)
Items
PLONS-2000
PLONS-2500
Water Evaporation Capacity (kg/h)
2000
2500
Material Processing Capacity
2688
3360
Feed Concentration (%)
11.5
11.5
Discharge Concentration (%)
45–48
45–48
1st Effect Evap. Temp. (℃)
68–72
68–72
2nd Effect Evap. Temp. (℃)
45–52
45–52
3rd Effect Evap. Temp. (℃)
—
—
4th Effect Evap. Temp. (℃)
—
—
Steam Consumption (kg/h)
800
1000
Cooling Water (t/h, 16→40℃)
14
18
Overall Dimensions (m)
5.5×3×8.5
5.5×4×11
Medium Capacity Models (2/2)
Items
PLONS-3000
PLONS-3200
Water Evaporation Capacity (kg/h)
3000
3200
Material Processing Capacity
4032
4300
Feed Concentration (%)
11.5
11.5
Discharge Concentration (%)
45–48
45–48
1st Effect Evap. Temp. (℃)
68–72
68–72
2nd Effect Evap. Temp. (℃)
45–52
55–60
3rd Effect Evap. Temp. (℃)
—
44–48
4th Effect Evap. Temp. (℃)
—
—
Steam Consumption (kg/h)
1200
900
Cooling Water (t/h, 16→40℃)
21
20
Overall Dimensions (m)
5×3.5×11
6.5×4×11
Large Capacity Models (1/2)
Items
PLONS-5000
PLCNS-6400
Water Evaporation Capacity (kg/h)
5000
6400
Material Processing Capacity
6720
8500
Feed Concentration (%)
11.5
11.5
Discharge Concentration (%)
45–48
45–48
1st Effect Evap. Temp. (℃)
68–72
68–72
2nd Effect Evap. Temp. (℃)
55–60
55–60
3rd Effect Evap. Temp. (℃)
44–48
44–48
4th Effect Evap. Temp. (℃)
—
—
Steam Consumption (kg/h)
1400
1700
Cooling Water (t/h, 16→40℃)
32
40
Overall Dimensions (m)
7.3×4×12
7.3×4×12
Large Capacity Models (2/2)
Items
PLCNS-8000
PLONS-10000
Water Evaporation Capacity (kg/h)
8000
10000
Material Processing Capacity
10000
13800
Feed Concentration (%)
11.5
11.5
Discharge Concentration (%)
45–48
45–48
1st Effect Evap. Temp. (℃)
68–72
68–72
2nd Effect Evap. Temp. (℃)
55–60
55–60
3rd Effect Evap. Temp. (℃)
55–64
44–48
4th Effect Evap. Temp. (℃)
44–48
—
Steam Consumption (kg/h)
1760
3080
Cooling Water (t/h, 16→40℃)
32
55
Overall Dimensions (m)
9.3×4×12
11.5×5×13
Note: Some data in the original datasheet has typesetting deviation. The above parameters are sorted out according to technical logic for reference only. Specific specifications can be fully customized according to actual production requirements.
Application Fields
- Pharmaceutical industry: Concentration of traditional Chinese medicine decoction, western medicine liquid, herbal extracts and pharmaceutical intermediates
- Food & dairy industry: Concentration of milk, dairy products, glucose, starch sugar, monosodium glutamate, fruit juice and other food liquid materials
- Chemical industry: Concentration of chemical solutions, fine chemical products and wastewater treatment evaporation processes
- Other industries: Low-temperature vacuum concentration of various heat-sensitive liquid materials in biological engineering, food additives and related industries
